وضعیت
:
موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
Siemens
تایپ کالا
:
3RT1054-1NF36
کد سازنده
:
3RT10541NF36
کد EAN
:
4011209507029
ویژگیها
Type of voltage for operation
AC / DC
Number of openers as main contacts
0
Number of close-ups as main contacts
3
Connection type Main circuit
Framework terminal
Rating control voltage AC 50 Hz
96... 127 V
Rating control voltage AC 60 Hz
96... 127 V
قیمت
:
استعلام
حداقل قابل خرید
:
1 عدد
قابل پرداخت
:
استعلام
مشاهده جزییات فنی کالا :
Power supply, AC-3e / AC-3 115 A, 55 kW / 400 V, AC (50- 60 Hz) / DC Uc: 96- 127 V PLC input 24 V DC 3-pole, auxiliary contacts 2 S + 2 Ö drive: electronic main station: frame terminal control and auxiliary current: screw connection power supply unit SIRIUS 3RT1 for switching engines. The 3RT1 are part of the SIRIUS system construction kit with its optimally coordinated products. They convince by great performance with at the same time compact construction and high contact reliability. They can be combined with other components in the consumer sector in a variety of ways. The shooter offers the right connection to the control (directly or via PLC input) for each application. Pre-assembled auxiliary switches reduce the complexity of your structure. The 3RT1 are air-resistant, globally approved (e.g. IEC and UL / CSA) and IE3 / IE4ready. They are available in different sizes and in a large range of services. They can be operated with AC or DC, some variants have a wide voltage range and a PLC control input. In the main circuit the devices can be connected via rails or frame terminals. For the auxiliary and control circuit, they are also available throughout with spring connection for a fast, maintenance-free and door-proof connection. For this shooter there are various accessories, such as wiring kits, which significantly reduce the wiring effort, auxiliary switches or terminal covers. Simple, efficient, always up to date - the SIRIUS system kit.
شما هم می توانید دیدگاه خود را درباره این کالا ثبت کنید.
دیدگاه خود را ثبت کنید

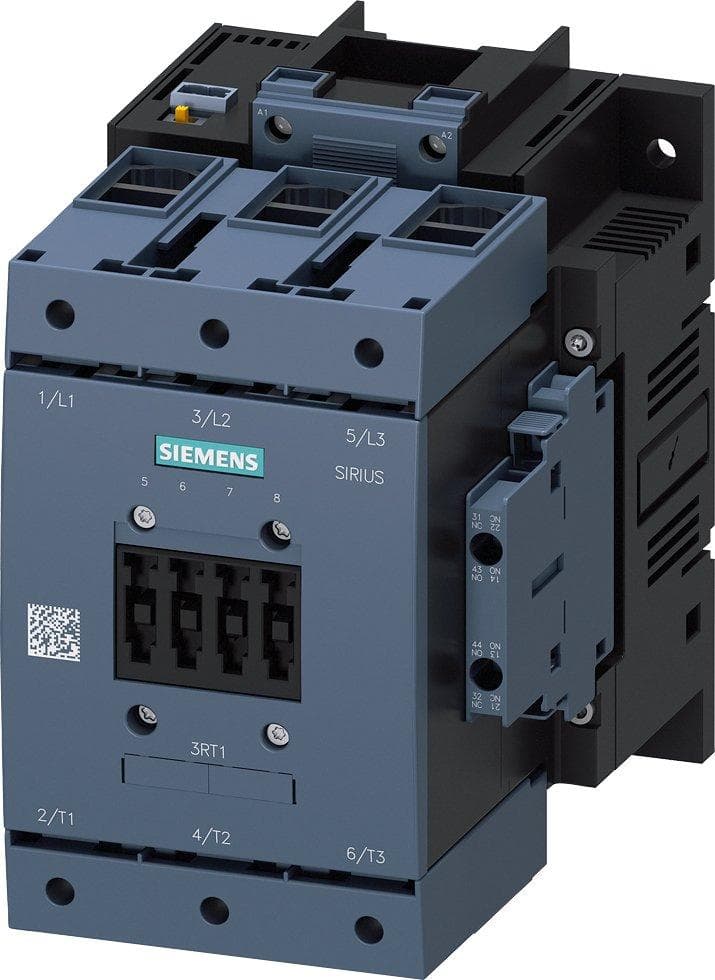

3RT1054-1NF36, Schütz, AC-3e, 115A / 55kW / 400V, 3-pole, AC / DC96-127V, PLC-IN optional, 2S + 2Ö, frame terminal / screw connection
