وضعیت
:
موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
Eaton
تایپ کالا
:
DILM9-01(220V50/60HZ)
کد سازنده
:
276732
کد EAN
:
4015082767327
ویژگیها
Rating control voltage AC 50 Hz
220... 220 V
Rating control voltage AC 60 Hz
220... 220 V
Control voltage DC
0... 0 V
Type of voltage for operation
AC
Number of openers as main contacts
0
Number of close-ups as main contacts
3
قیمت
:
استعلام
حداقل قابل خرید
:
1 عدد
قابل پرداخت
:
استعلام
مشاهده جزییات فنی کالا :
Additionally available packaging sizes: 102
Power supply, 4kW / 400V, ACpower supply, application: power supply for engines, power supply up to 170 A, 3-pole, category of use: AC-1: non-inductive or low inductive load, resistance furnaces, AC-3: cage-run engines: start, switch off during the run, AC-4: cage-run engines: start, counter-current brakes, reversing, tap, screw clamps, Note: Also suitable for engines of the efficiency class IA = 3V, 3V = 3V = 3V, 3V = 3V, 3V = 3V = 3V, 3V = 3V, 3V = 3V, 3V = 3V, 3V = 3V, 3V = 3V, 3V = 3V, 3V = 3V, 3V = 3V, 3V, 3V = 3V, 3V = 3V, 3V, 3V = 3V, 3V = 3V, 3V = 3V, 3V, 3V = 3V, 3V, 3V = 3V, 3V = 3V, 3V, 3V = 3V, 3V = 3V Rated operating power: 50 - 60 Hz AC-3 220 V 230 V: P = 2.5 kW, 380 V 400 V: P = 4 kW, 660 V 690 V: P = 4.5 kW, max. Rated operating power: 50 - 60 Hz AC-4 220 V 230 V: P = 1.5 kW, 380 V 400 V: P = 2.5 kW, 660 V 690 V: P = 3.6 kW, can be combined with auxiliary switch: DILA- XHI (V).., contact assembly Ö = opener: 1 Ö, information: switching lines according to EN 50012., with mirror contact, Stromart AC / DC: AC / DC: AC-current-actuation metal number (copper): 0.050 per 1. The number of metal is a purely commercial size of the industry - and can be given - if the actual weight of the metal can vary.
شما هم می توانید دیدگاه خود را درباره این کالا ثبت کنید.
دیدگاه خود را ثبت کنید

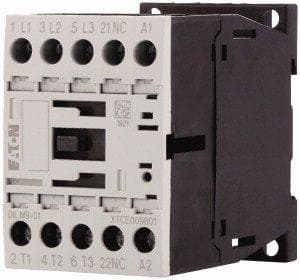

DILM9-01 (220V50 / 60HZ), power supply, 3-pole, 380 V 400 V 4 kW, 1 Ö, 220 V 50 / 60 Hz, AC power control, screw terminals
