وضعیت
:
موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
Schneider Electric
تایپ کالا
:
TM173ODM22R
کد سازنده
:
TM173ODM22R
کد EAN
:
3606487007333
ویژگیها
Type of supply voltage
AC / DC
Number of relay outputs
5
Execution
compact
Number of HW interfaces Industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW interfaces serial RS-232
0
قیمت
:
استعلام
حداقل قابل خرید
:
1 عدد
قابل پرداخت
:
استعلام
مشاهده جزییات فنی کالا :
ASK 31.4 150 / 5A 2.5VA K.1, industrial converter 150A, class 1
LC1D150B7, power supply LC1D 3p, + 1S + 1Ö, 75 kW, 150 A, 400 V AC3, coil 24 V AC
GV4PEM25B6, engine protection switch NFC Multi. TeSys GV4 - 25A 3P 25kA - Tipplever
3RT1456-2XB46-0LA2, Schütz, AC-1, 275A / 690V, DC 24V, 0.7-1.25 * Us, 2S + 2Ö, 3-pole
Additionally available packaging sizes: 15
M173 Opt. Display 22 E / A, 2 RS485The PLC control Modicon M173 in Optimized version is part of the Modicon M171 / M172 / M173 series, a control range for HLK / pump applications. The control has 6 digital inputs, 7 analog inputs, 5 digital outputs (relays), 4 analog outputs. With integrated and optional interfaces, the control can be flexibly connected. Two RS485 interfaces and a CAN extension bus connection are integrated. It is a programmable logic control complete automation solutions designed for HLK and pump systems and is equipped with an LCD display. The control is compatible with E / A extension modules and secure interfaces. The power supply is over 24 VAC / 24 VDC. The connections are made by means of removable screw clamps (included in delivery). The assembly is done on a 35mm hat rail or mounting plate with mounting accessories. It is programmed with free software EcoStruxure Machine Expert - HVAC.
شما هم می توانید دیدگاه خود را درباره این کالا ثبت کنید.
دیدگاه خود را ثبت کنید

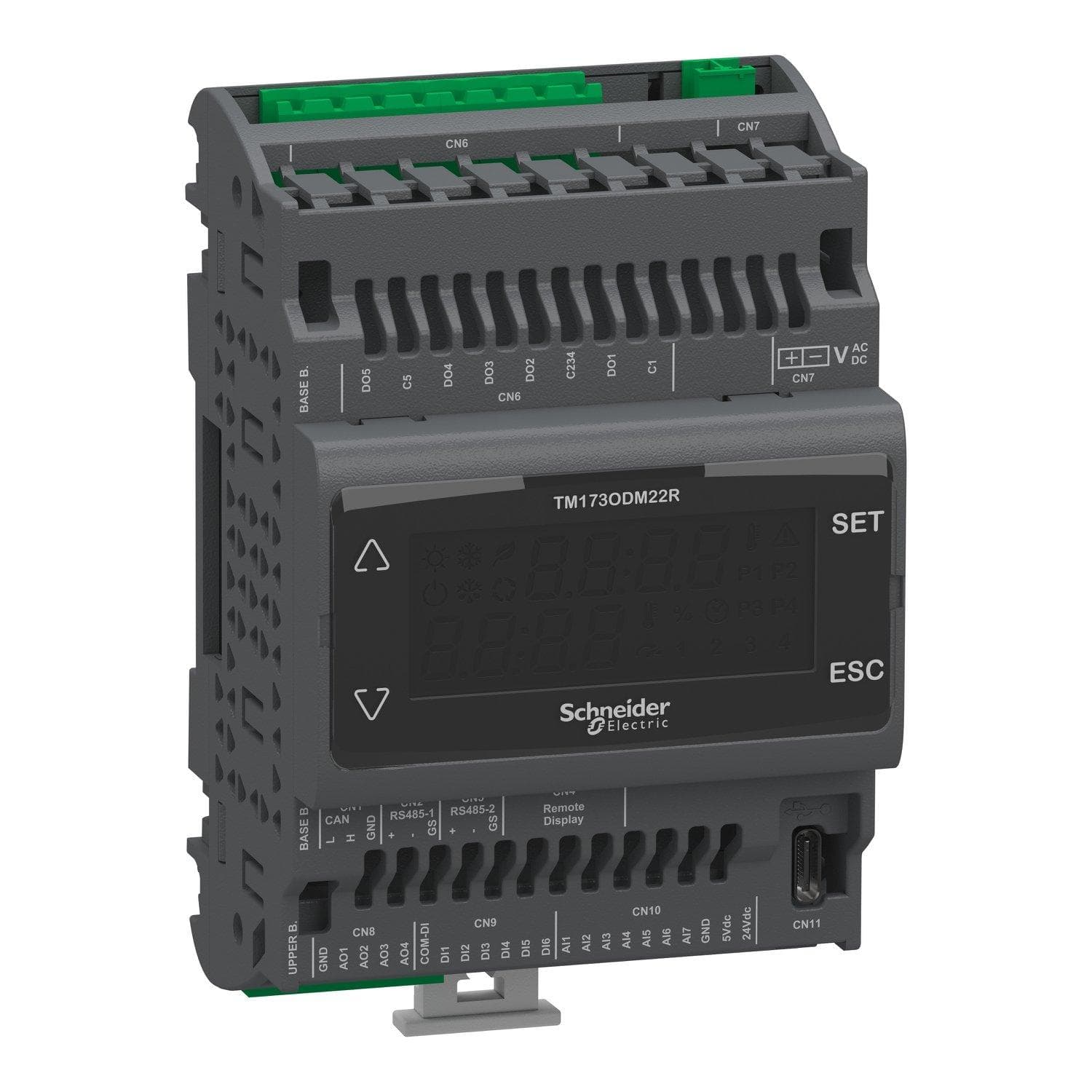

TM173ODM22R, PLC control, Modicon M173, Optimized with display, 22 E / A, 2 RS485, 1 CAN, 24 VAC / DC
