وضعیت
:
موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
Doepke Schaltgeräte
تایپ کالا
:
DCT A-035
کد سازنده
:
09340321
کد EAN
:
4014712241039
ویژگیها
Opening width
35 mm
Execution
other
With copper rail
No
Secondary connection
Connection
Primary current
125 A
Accuracy class _ A
other
قیمت
:
استعلام
حداقل قابل خرید
:
1 عدد
قابل پرداخت
:
استعلام
مشاهده جزییات فنی کالا :

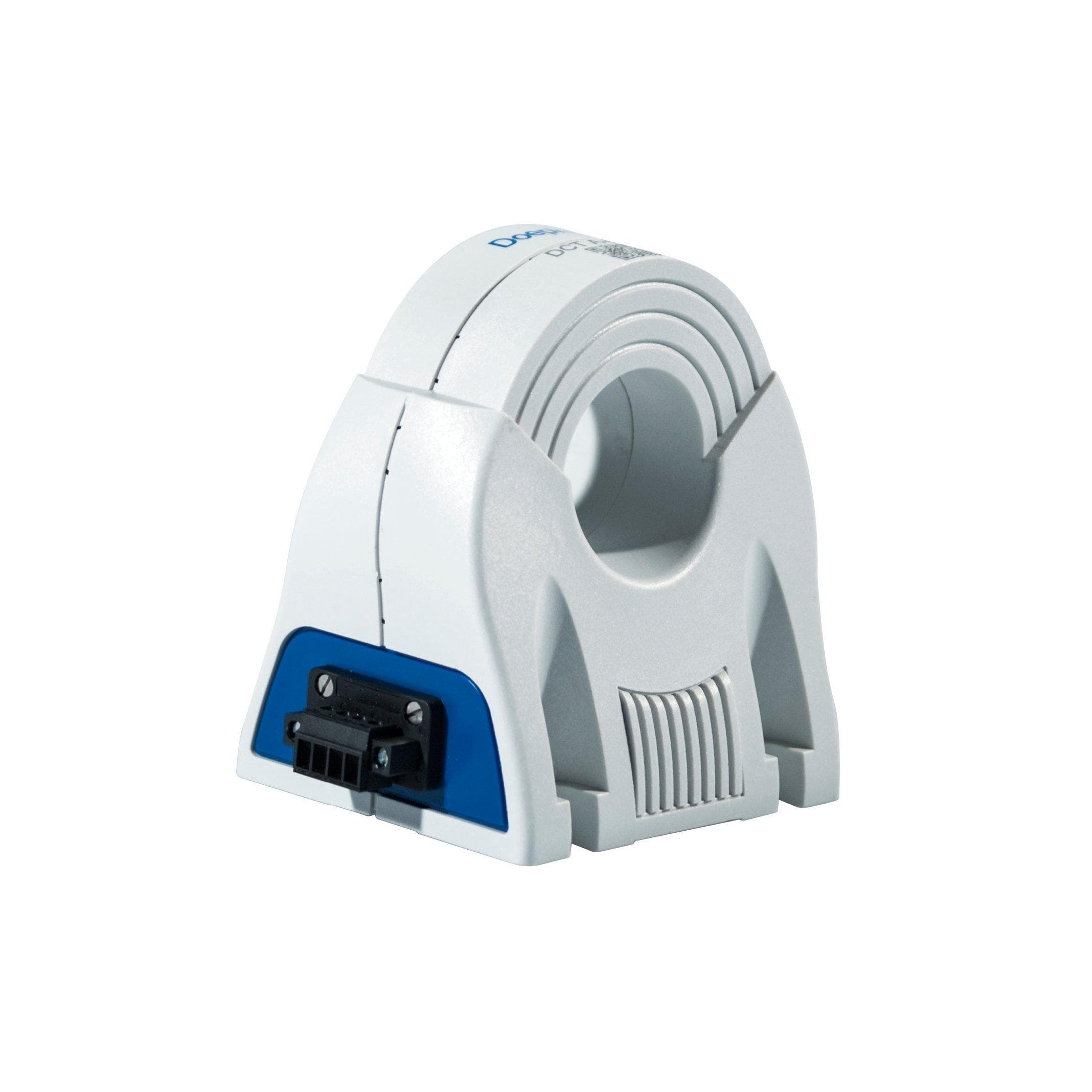

Doepke differential current converter for DMRCD / DRCM, d = 35 mm, type A, AC
Differential current converters are used in combination with evaluation units for the monitoring and protection of circuits. DCT series converters form a modular DMRCD or combined with the DCM RCM. Type A differential current converters control sinusoidal alternating and pulsating direct error flows. Characteristics: suitable for the detection of differential and Type A and AC error flows; controlled frequency range 50 Hz - 60 Hz (type A) detection of nominal response difference and Fault current 30, 100, 300, 1000 and 3000 mA; available with internal diameter of 20, 35, 70 and 105 mm; the measurement voltage of the current circuit to be monitored up to 690 V; for measuring currents up to 400 A; compact, robust plastic housing; simple assembly; Type of assembly: The mounting is done on a solid base or a mounting plate by means of the existing screw points. Applications: DCT A series converters are used in connection with DRCM type A series differential current monitors and DMRCD type A series modular fault current protection devices. Note: The differential current converters may only be operated as a flow-through converter with isolated cable and control systems. The internal diameter of the converter shall be at least 1.5 greater than the external diameter of the line (s) carried out.
شما هم می توانید دیدگاه خود را درباره این کالا ثبت کنید.
دیدگاه خود را ثبت کنید
DCT A-035, Doepke differential current converter for DMRCD / DRCM, d = 35 mm, type A, AC
