وضعیت
:
موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
Stahl Schaltgeräte
تایپ کالا
:
8562/54-4105-250
کد سازنده
:
149663
کد EAN
:
4046827018060
ویژگی‌ها
Type of voltage
AC

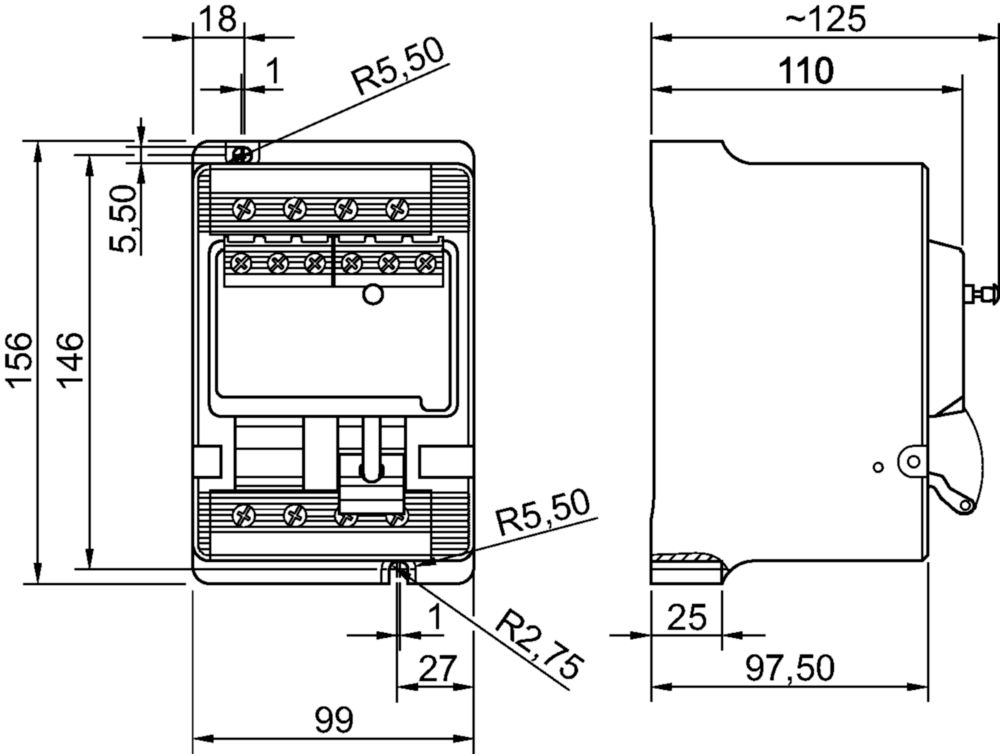

Installation depth
125 mm
Connectable cross-section of the conductor
1.5... 10 mm ²
Polar number (total)
4
Ambient temperature during operation
-20... 60 ° C
Connectable cross-section
1.5... 6 mm ²
قیمت
:
استعلام
حداقل قابل خرید
:
1 عدد
قابل پرداخت
:
استعلام
مشاهده جزییات فنی کالا :
NSYS3X12830, PanelSeT S3X stainless steel 304L, Scotch Brite ® surface, H1200xB800xT300mm.
AMR 2.5 / 50, clamp marking, white, grid in mm: 5.10, width: 255 mm, height: 10.5 mm
3VA5110-5ED11-0AA0, power switch 3VA5 UL Frame 125 switching power class M 35kA @ 277V 1-pole
3VA2510-6HN32-0BH0, power switch 3VA2 IEC Frame 1000 switching power class H Icu = 85kA @ 415V 3-pole, system protection ETU350, LSI, In = 1000A overload protection Ir = 400A... 100

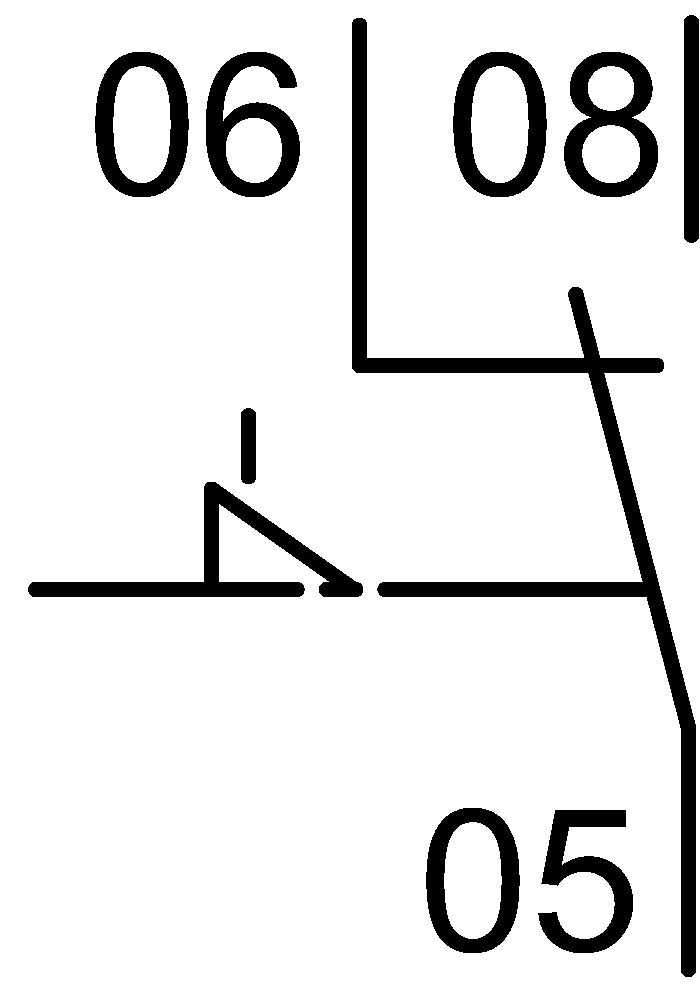

8562 / 54-4105-250, Fault flow protection switch, 25 A, 0.03 A, Polar number, 4, 230 - 400 V AC, Fault signal, Zone 1 / 2
The 8562 series of R. STAHL error-flow control switch is a component for the monitoring of the error-flow and switches systems in case of error-flows - for reliable personal protection in potentially explosive areas. It is suitable for pulsating direct current and alternating current and is designed for measuring operating current of 16, 25 or 40 A, rated error current is 10, 30, 100, 300 and 500 mA. Fault flow protection switch, explosion-proof, type: 8562 / 54-4105-250, pole number: 4, Rating operating voltage AC: 230,00 - 400,00, Rating operating current: 25 A, range of application (zones): 1, 2, gas explosion protection: II G Ex-IIC-5 Gb, impact protection: IP20 ° C, see also: M20 ° C
شما هم می توانید دیدگاه خود را درباره این کالا ثبت کنید.
دیدگاه خود را ثبت کنید
8562 / 54-4105-250, 8562 / 54-4105-250, Fault flow protection switch, 25 A, 0.03 A, Polar number, 4, 230 - 400 V AC, Fault signal, Zone 1 / 2
