وضعیت
:
موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
Stahl Schaltgeräte
تایپ کالا
:
8523/81-05-000
کد سازنده
:
146634
کد EAN
:
4046827016363
ویژگیها
Set range of the immediate short-circuit trigger
0 A
Type of protection (IP)
IP20
Polar number
3
Height
130 mm
Rated current
1 A
Width
80 mm
قیمت
:
استعلام
حداقل قابل خرید
:
1 عدد
قابل پرداخت
:
استعلام
مشاهده جزییات فنی کالا :
8523 / 81-05-000, power switch for motor protection, 0.63 - 1 A, 690 V, polarity, 3, 12,5 kW / 400 V, trigger: without, zone 1 / 2

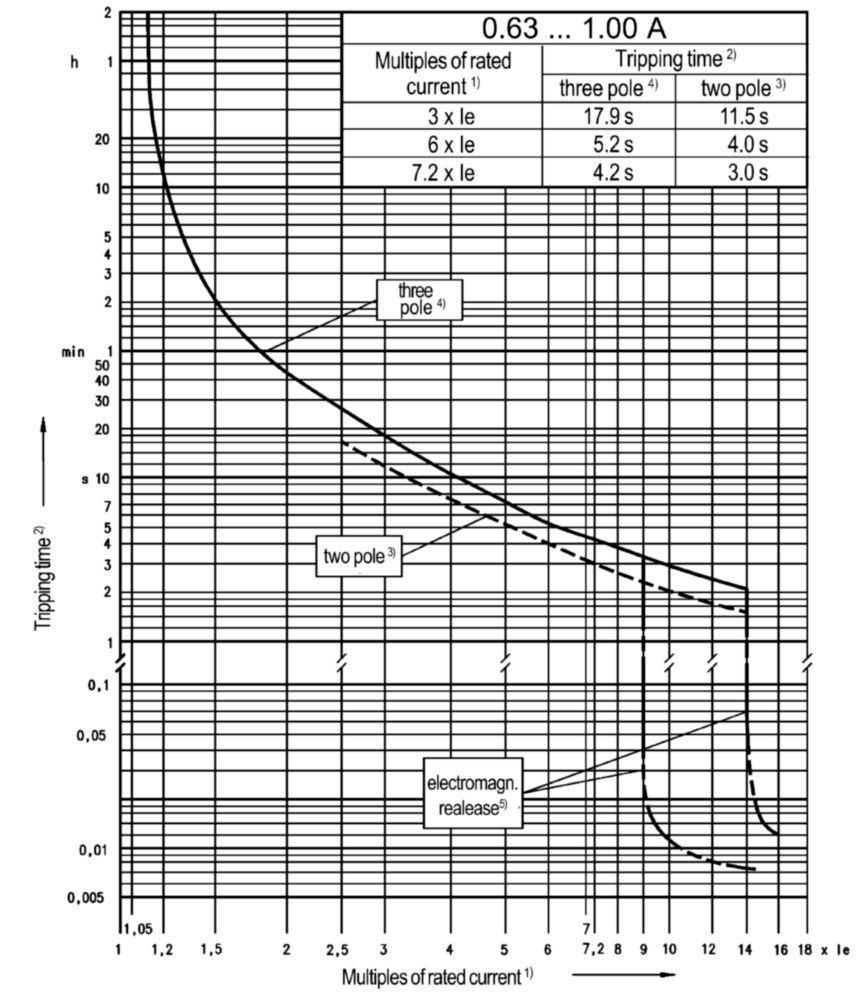

The engine protection circuit breakers of the series 8523 / 8 from R. STAHL protect and switch ex- e motors with a fixed short-circuit quick-release and a thermal overcurrent-trigger adjustable at the switch. The switch is operated by a rotary handle, the switching position is clearly visible at any time. You can set different power ranges. Circuit breaker for motor protection, explosion-protected, type: 8523 / 81-05-000, rated operating voltage AC: 690 V, power input range min.: 0.63 A, power input range max.: 1 A, pole number: 3, trigger: without, connection cross-section: 1.5... 10 mm2 enemy-drenched, 1.5... 10 mm2 single-wire, housing material: epoxy resin or polyester resin, housing size: 130mm x 80mm x 11.5, application area (zones): 1, 2, gas explosion protection: II 2 G Ex db IIC, impact protection: I M2 Ex db I, ambient temperature: 8510 ° C, see also: 020 ° C
شما هم می توانید دیدگاه خود را درباره این کالا ثبت کنید.
دیدگاه خود را ثبت کنید
8523 / 81-05-000, 8523 / 81-05-000, power switch for motor protection, 0.63 - 1 A, 690 V, polarity, 3, 12.5 kW / 400 V, trigger: without, zone 1 / 2
