وضعیت
:
موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
Siemens
تایپ کالا
:
3RT2348-1AL20
کد سازنده
:
3RT23481AL20
کد EAN
:
4047621027173
ویژگیها
Rating control voltage AC 50 Hz
230 V
Type of voltage for operation
AC
Connection type Main circuit
Screw connection
Rated operating current Ie at AC-1, 400 V
160 A
Rating control voltage AC 60 Hz
230 V
Number of help contacts as opener
1
قیمت
:
استعلام
حداقل قابل خرید
:
1 عدد
قابل پرداخت
:
استعلام
مشاهده جزییات فنی کالا :
RM-EINR. IN73 / MN78, replacement actuator / RM device for position switch type IN73 / MN78-... RM (roll bar with metal roll)
MKS3P- 5 240VAC, relays, plug-in, 11-pin, 3PDT, 10 A, mech. Display, test button
CP-PC RD, PCB connection, coding profile
3RW5983-0TC20, connection cover for 3RW55 / 52 size 2 and 3
Schütz, AC-1, 160 A / 400 V / 40 ° C, S3, 4-pole, AC 230V, 50 / 60Hz, 1S + 1Ö
Schütz AC-1, 160 A, 400 V / 40 ° C, 4-pole, AC 230 V, 50 / 60 Hz, auxiliary contacts: 1 S + 1 Ö, screw connection, size: S3 Schütz SIRIUS 3RT23 for switching of weak or non-inductive consumers. The 3RT23 are part of the SIRIUS system construction kit with its optimally coordinated products. They convince by great performance with at the same time compact construction and high contact reliability. They can be combined with other components in the consumer sector in a variety of ways. Many of the device combinations are tested on the factory. The shooter offers the optimal connection to the control (parallel, via ASi or IO-Link) for each application. Integrated auxiliary switches reduce the complexity of your structure. The front-side connections allow simple wiring. The 3RT23 are air-resistant and approved worldwide (e.g. IEC and UL / CSA). They are available in different sizes and in a large power range in AC and DC operation. In addition to screw hose technology, the devices in the smaller sizes are also available throughout with spring connection for a fast, maintenance-free and brittle-proof connection. The comprehensive accessories, such as auxiliary switches, auxiliary triggers, etc. are uniform for all sizes. Simple, efficient, always up to date - the SIRIUS system kit.
شما هم می توانید دیدگاه خود را درباره این کالا ثبت کنید.
دیدگاه خود را ثبت کنید

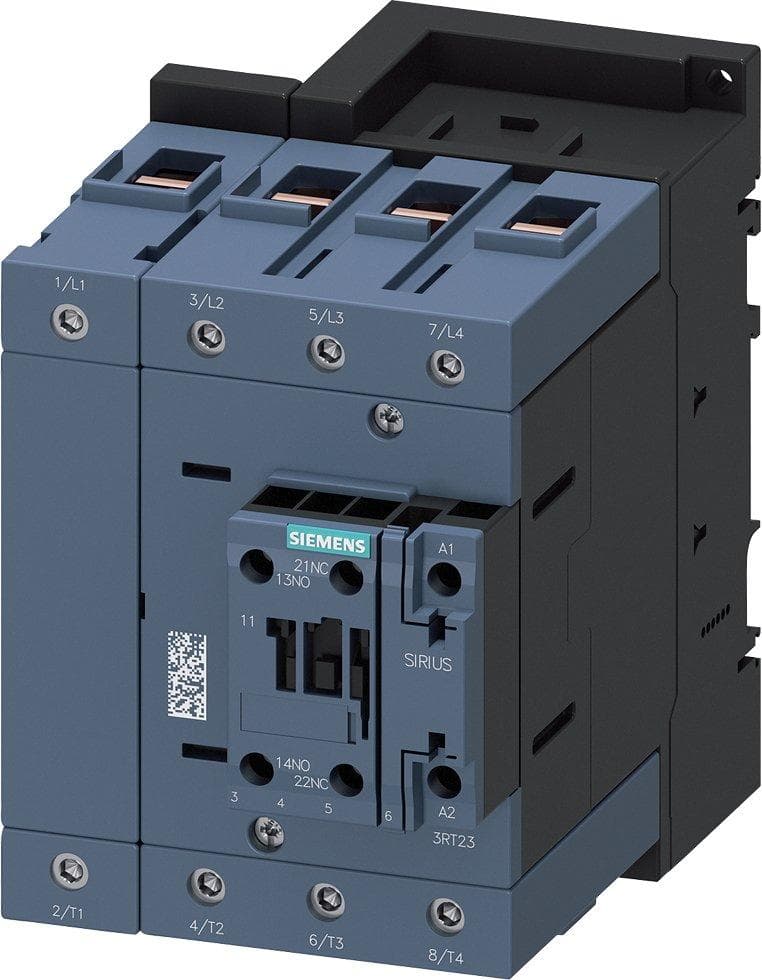

3RT2348-1AL20, Schütz, AC-1, 160 A / 400 V / 40 ° C, S3, 4-pole, AC 230V, 50 / 60Hz, 1S + 1Ö
