وضعیت
:
موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
Balluff
تایپ کالا
:
BTL6-A110-M0050-A1-S115
کد سازنده
:
BTL001W
ویژگیها
Type of voltage
DC
Rating supply voltage DC
20... 28 V
Ambient temperature
0... 70 ° C
Case material
Aluminium
Type of operation
Magnet
Electrical connection design
Connectors
قیمت
:
استعلام
حداقل قابل خرید
:
1
قابل پرداخت
:
استعلام

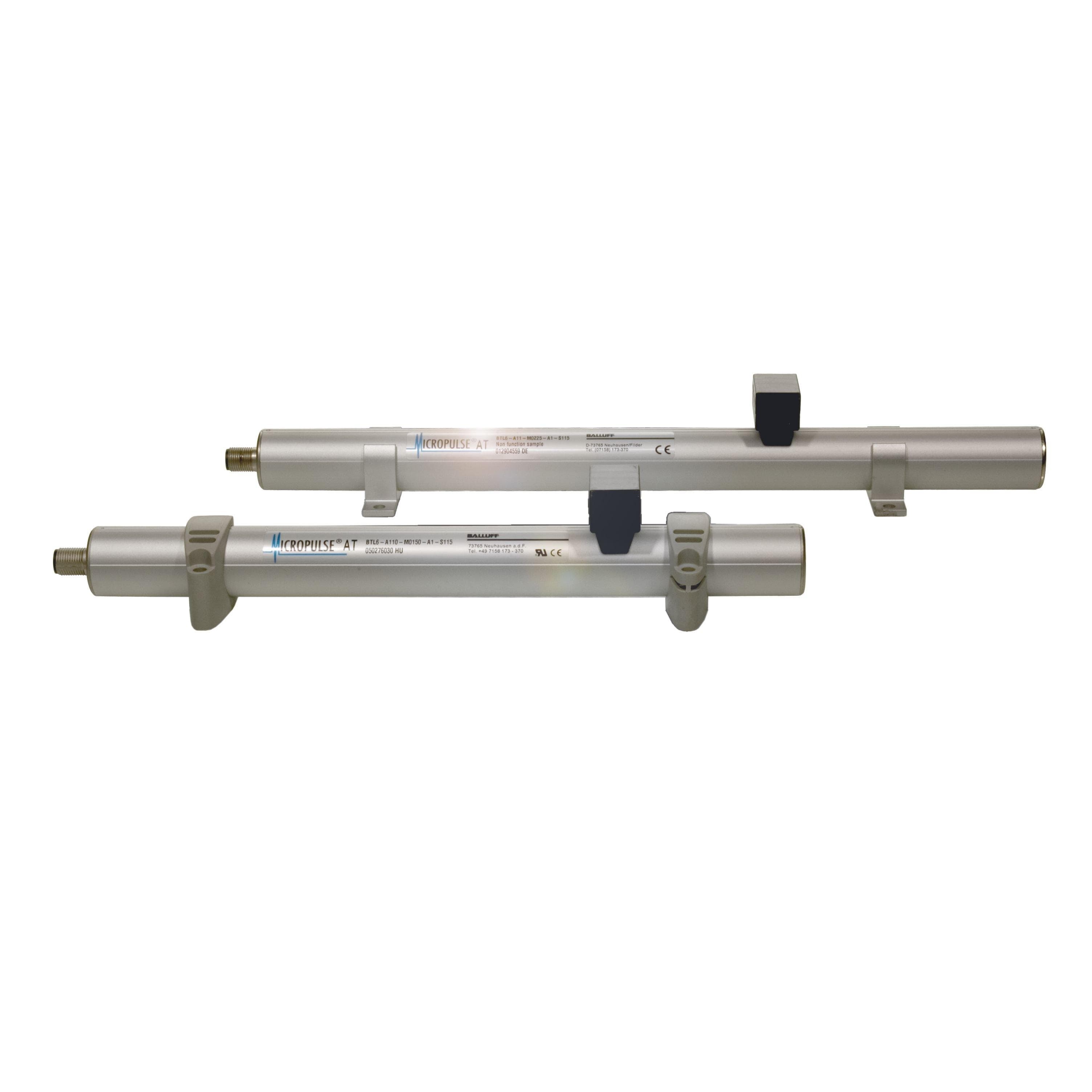

Magnetostrictive sensor, BTL001W
Position measurement systems in profile design are contact-free and absolutely measuring systems for the precise recording of one or more positions. They convince in harsh environments, for example in presses, injection moulding machines or portal robots, because they consist of a hermetically dense IP67 aluminium housing. The magnets of the position sensor act through the wall of the profile on the measuring element. Form = Series profile, fastening = mounting clamps, housing material = aluminium, position sensor, number max. = 1, connection = connector, M12x1, 8-pin, analog output = analog, voltage 0... 10 V, analog, voltage 10... 0 V, measuring range = 50 mm, measuring frequency max. = 1000 Hz, resolution =? 20 µm, linear deviation max. = ± 200 µm, repeat accuracy =? ± 10 µm, operating voltage Ub = 20... 28 VDC, ambient temperature = 0... 70 ° C, protection type = IP67, approval / conformity = CECULUEACWEEE
شما هم می توانید دیدگاه خود را درباره این کالا ثبت کنید.
دیدگاه خود را ثبت کنید
BTL6-A110-M0050-A1-S115, Magnetostatic sensor, BTL001W
