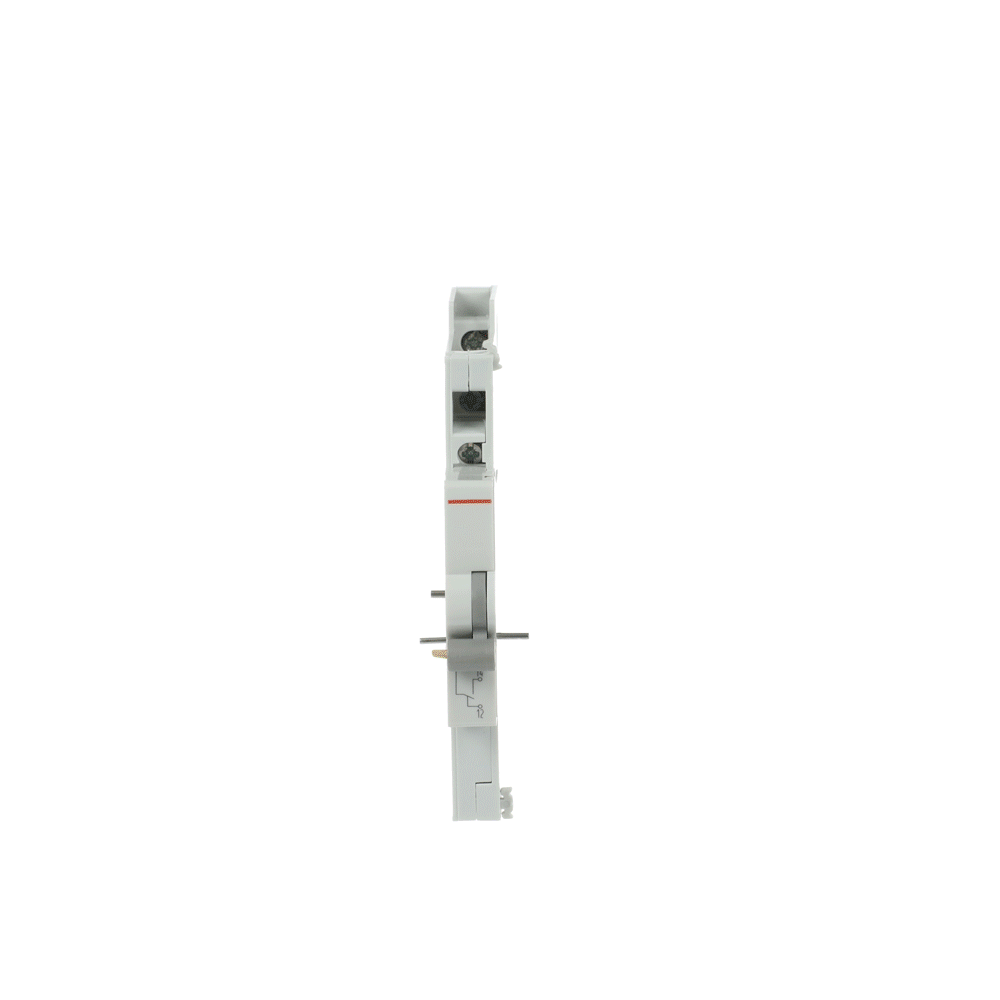

CA UN H, CA UN H - Auxiliary contact CA Unibis Seitlich, 1W, H-Contact

CA UN H - Auxiliary contact CA Unibis side, 1W, H-contact

AEG Line auxiliary switch: The UnibisTM auxiliary switch has a double function: 1. Standard function as a switching control for which it has been developed. 2. Interface function that allows the use of accessories in combination with the Unibis ™ series. Example: A CA UN 672972 auxiliary contact is mounted in the combination of an under-voltage trigger Tele U with an LS switch Unibis ™. Use: auxiliary switches are devices for the control of the switch for mounting to the protection switch. Auxiliary switch CA H: Report the status of the protective organ, ON / OFF. Fault signal or auxiliary switch CA S / H: Het toestel kan as a hulpcontact of as a signaalcontact incorporated (function S). The switch can be defined as an auxiliary switch (H) or an error signal switch (S). Before installation the function can be set by the Monteur. When setting as an error signal switch, for LS switches in case of overload or short circuit, for FI protection switches in case of an error current is switched. The device has a test button on the front side to check the contact change. For the function S there is a reset key on the front side, as well as a switching position display. Characteristics: Also suitable for modular protection organs LS and FI up to 63A. At LS and modular switches can be mounted on both sides. Allow the operation of assembly rails by positioning the support component. Variants with gold-plated contacts for use with low currents or low voltages. Left and right up to 4 auxiliary switches each.
