وضعیت
:
موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
WAGO
تایپ کالا
:
750-671
کد سازنده
:
750-671
کد EAN
:
4045454853310
ویژگیها
Height
100 mm
Depth
67.8 mm
Width
12 mm
Type of protection (IP)
IP20
Number of functions
2
System component
Yes
قیمت
:
استعلام
حداقل قابل خرید
:
1 عدد
قابل پرداخت
:
استعلام

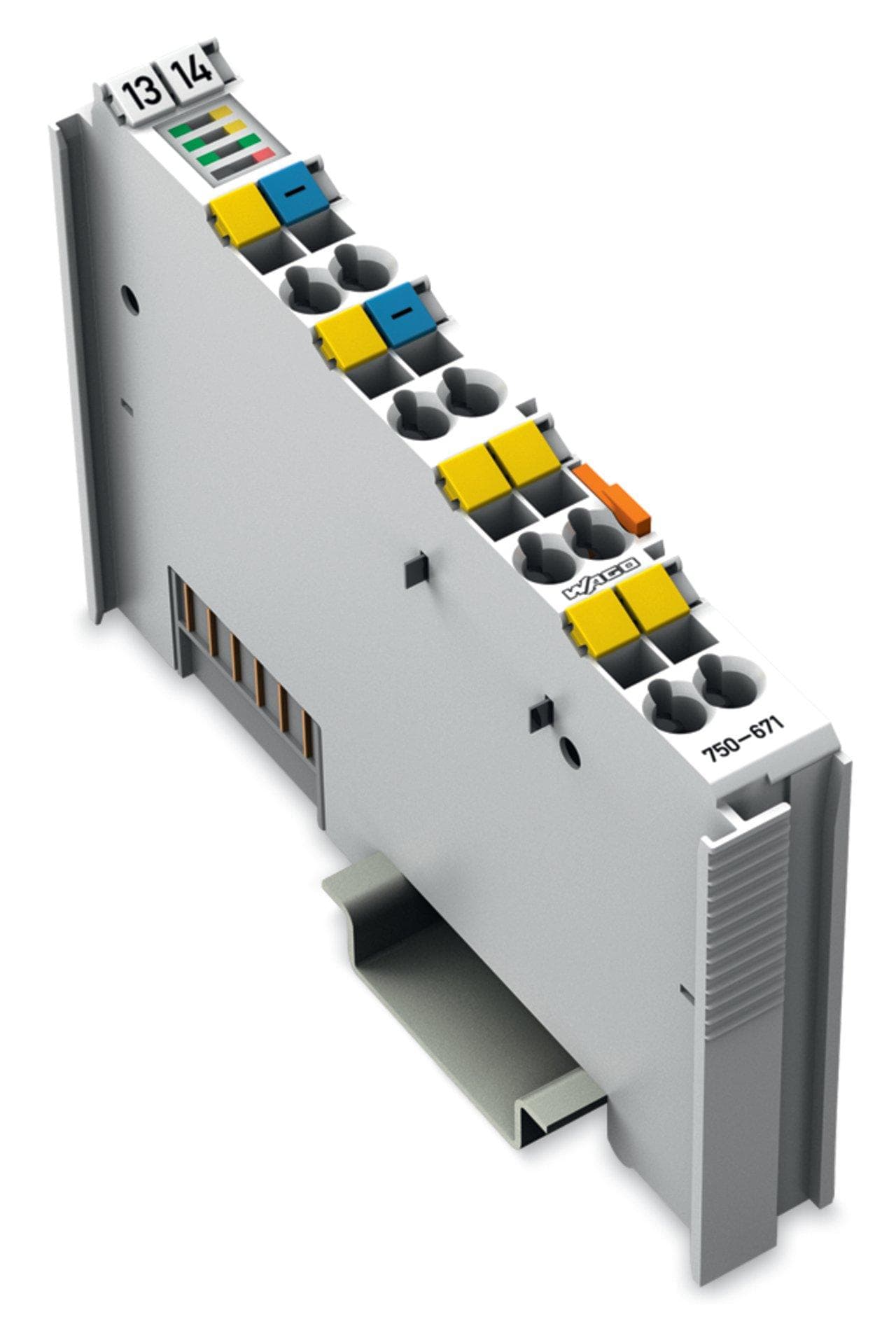

Stepper controller DC 24 V light grey
Stepper controller, DC 24 V, 1.5 ADas Module 750-671 is an intelligent stepper controller with its own power level to control 2-phase stepper motors up to 24 V / 1.5 A. The 64-fold microstepping avoids resonance-related step losses in the acceleration phases and protects the mechanics. Adjustable current limits for standstill, acceleration and constant speed minimize the power loss of the engines. Two configurable inputs for start / stop, end switch, reference cam, jog / tip etc. are evaluated directly and without further delay from the internal software. Flexible functions such as positioning with different acceleration ramps, command tables, cam control, car reference and other event-related properties allow a wide range of applications. The programmer interface is the same for all modules of the WAGO stepper controller family.
شما هم می توانید دیدگاه خود را درباره این کالا ثبت کنید.
دیدگاه خود را ثبت کنید
750-671, stepper controller DC 24 V light grey
