موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
WAGO
تایپ کالا
:
750-1500
کد سازنده
:
750-1500
کد EAN
:
4045454898267
ویژگیها
Supply voltage DC
24 V
Permissible voltage at the input
24 V
Type of supply voltage
DC
Type of digital output
other
Type of input voltage
DC
Output current
0.5 A
قیمت
:
استعلام
حداقل قابل خرید
:
1 عدد
قابل پرداخت
:
استعلام
مشاهده جزییات فنی کالا :
032022, Colring cable, black, inbound, 4,6 x 180 mm (BxL), UV-resistant
G3RV-ST700-D 24VDC, semiconductor relay, 6mm, incl. base, MOSFET, screw connection, 3A, 24V DC
6AG1214-1HF40-5XB0, SIPLUS S7-1200 CPU 1214FC DC / DC / Relais -25... + 55 ° C based on 6ES7214-1HF40-0XB0
6SL3546-0FB21-1FC0, SINAMICS G120D CU250D-2 PN-F FO
16-channel digital output DC 24 V 0.5 A light grey
16-channel digital output, DC 24 V, 0.5 A, flat-band cable The digital output module has 16 channels at only 12 mm width. There are binary control signals from the automation device to the connected actuators (e.g. magnetic valves, shooter, donor, relay or other electrical loads). The module allows the connection of electronic components via a 20-pole flat-band cable. The 24V supply voltage for the components can be fed in via two CAGE CLAMP ® connectors. The signal state of each channel is displayed with a green status LED. Field and system levels are galvanically separated.
شما هم می توانید دیدگاه خود را درباره این کالا ثبت کنید.
دیدگاه خود را ثبت کنید

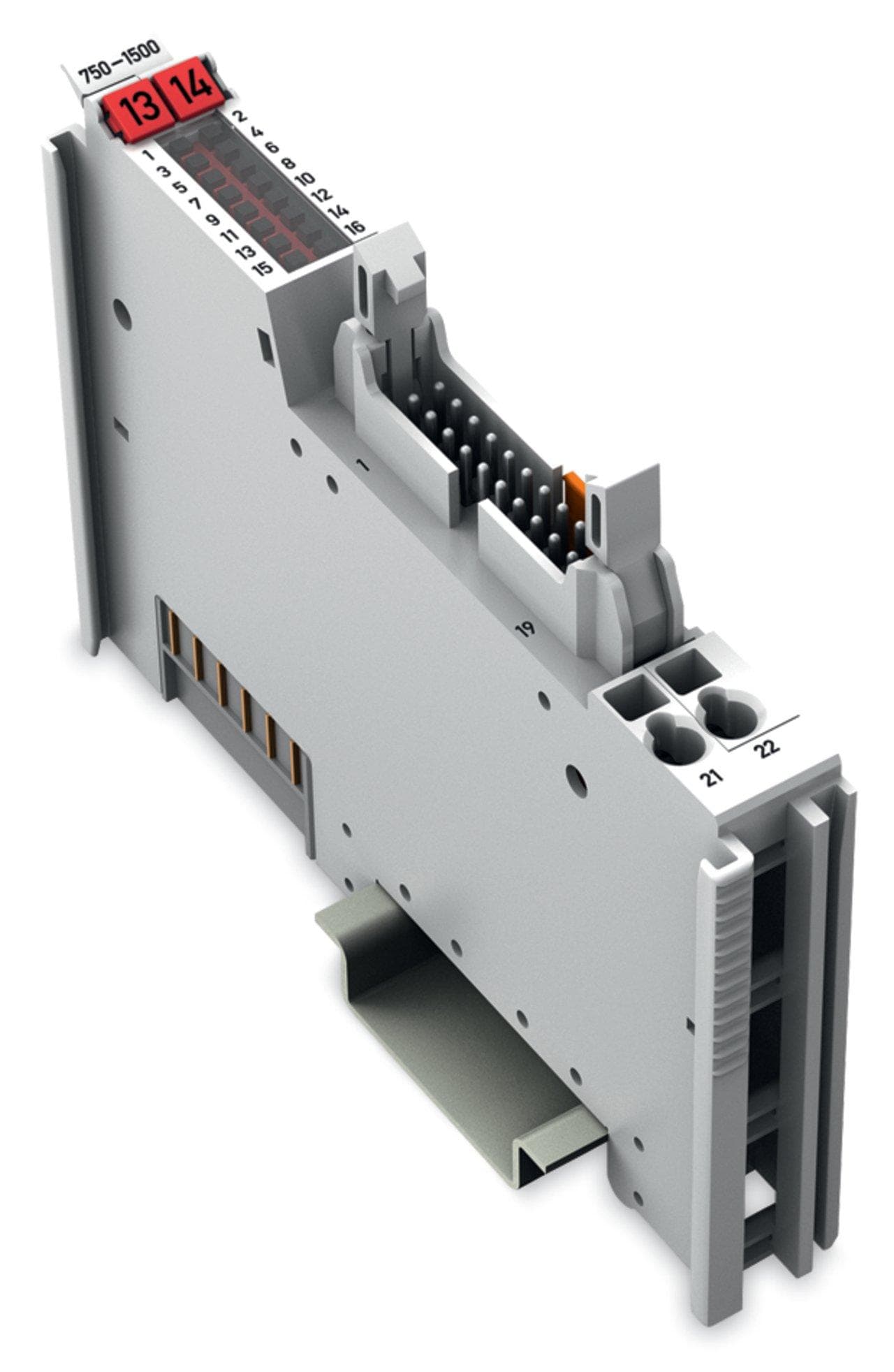

750-1500, 16-channel digital output DC 24 V 0.5 A light grey
