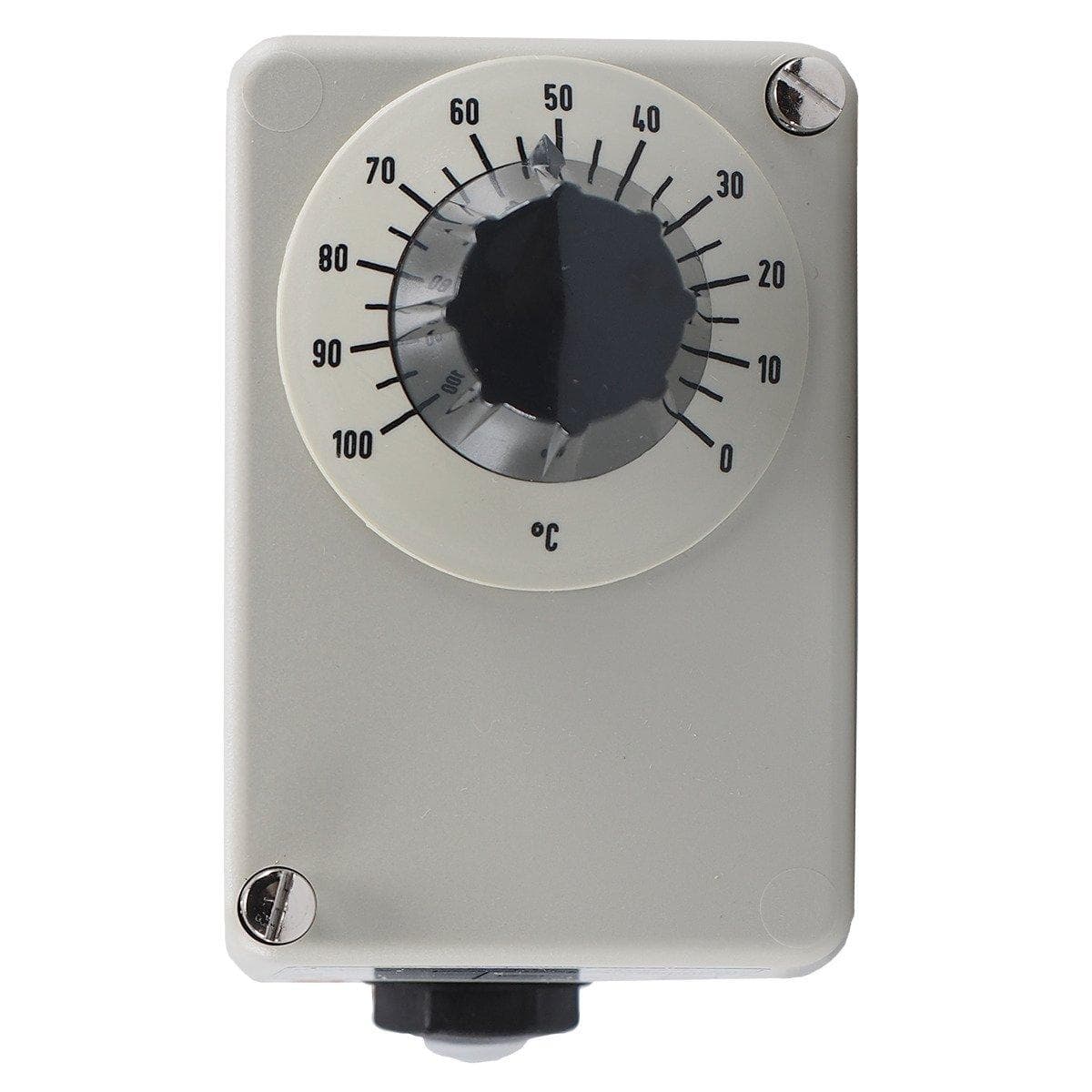

603021 / 01-2-025-30-1000-40-10-00-00-000-00-6 / 000, temperature controller with switching contact, 0 to 100 ° C, transmission line 1000 mm

Temperature controller with switching contact, 0 to 100 ° C, transmission line 1000 mm

Due to its impact-resistant housing with high-quality plastic cover and aluminium-cast base, the 1-pole mechanical construction thermostat is very robust and can also be used under harsh conditions. The measuring system used is based on the fluid expansion principle and can be used without any problems up to a maximum permissible sensor temperature of 125 ° C. The smooth copper round sensor has a diameter of 6 mm with a sensor length of about 107 mm. The transmission of the thermostat is also made of copper and can be moved flexibly with respect to a 5 mm bending radius. The maximum permissible ambient temperature on the housing (protection type IP54) is 80 ° C. With the help of a set value, the desired shutdown temperature can be easily set on a scale. The temperature controller is characterized by a high switching point accuracy of + / -1.5% in the upper scale. A key advantage is that no additional auxiliary energy is required for temperature measurement. The electrical connection is made by screw terminals directly on the built-in microswitch, which can directly switch a maximum permissible switching power of AC 230 Volt / 10 A. The thermostat has a switching difference (hysteresis) of about 3 to 4% of the scale and automatically switches back to the original state after the temperature is down. The temperature controller is very flexible and is used in the heating, air conditioning and ventilation technology as well as in the plastics industry, equipment and mechanical engineering, as well as in the furnace construction and temperature monitoring in the laboratory and climate cabinets. The device is approved in accordance with DIN EN 14597 and has an EAC approval.
