3SU1801-0NV00-4SA2, case for command devices 22mm round plastic, case top yellow

Case for command devices 22mm round plastic, case top yellow

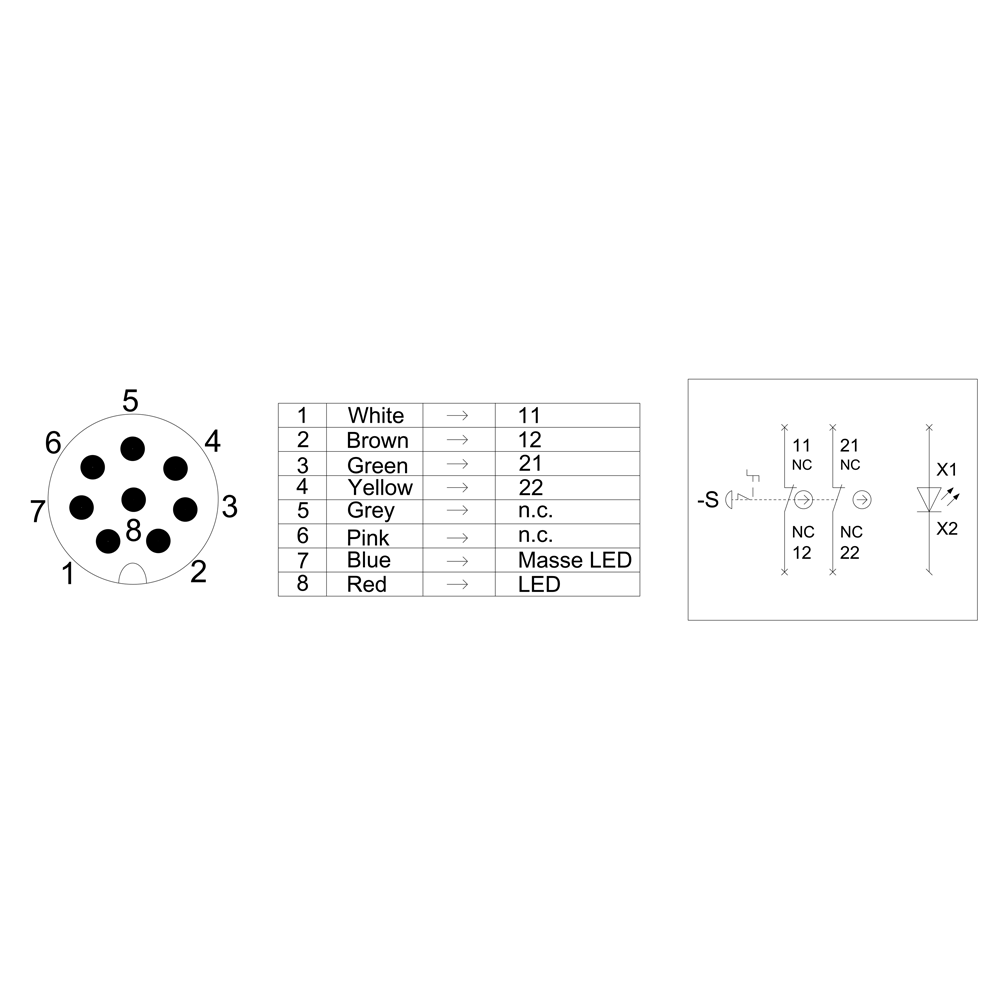

Conveyor for command devices, 22 mm, round, housing material plastic, housing top yellow, 1 command point plastic, A = NOT-HALT-Mushroom pressure button red, 40 mm, rotated, illuminated, 2x 1Ö, LED-white 24 V, spring connection, floor attachment, M12-plug (8-pin) below, isolated reserve devices, plug-in: PIN1 = 11, PIN2 = 12, PIN3 = 21, PIN4 = 22, PINC. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of command and reporting devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic. The innovative pick-up concept simplifies the assembly so far that only one hand and no special tool is required. As mounting holes are sufficient for non-slip holes, as a 100% turning protection is already integrated. Thanks to the consistently high protection type, the robust devices are suitable for industrial use and suitable for outdoor use. Even the cleaning with high-pressure beam is possible. Neither dust, oils nor aggressive lye can interfere with reliable operation. In addition to the standard wiring, most devices can also be connected to the control via PROFINET, AS- interface or IO- link. This will reduce your wiring effort, minimize error sources and gain more flexibility. The graphical online configurator supports the selection and ordering of individual devices, housings and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available. Available: yellow / grey, plastic / metal, 1-6 command points, empty housing / pre-assembly, optionally with AS- interface connection. SIRIUS ACT - Performance in action during command and reporting. Just mounted, just strong, just perfect.
