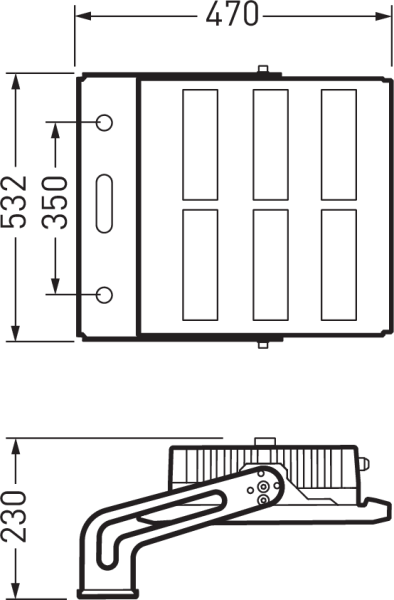

LnFit 50-AM11L / 39000-740 1G1L ETDD, Mast-set electronics Trafo DALI DIM ETDD CLO 310W 39000lm 740 IP66 470x532x230 anthracite

Mast set lamp electronics Trafo DALI DIM ETDD CLO 310W 39000lm 740 IP66 470x532x230 anthracite

LED floodlight radiator for surface lighting and lighting. For mast assembly. Turning range 0 °, 5 °, 10, 15 °. In order to attach the lamp to the mast in a single or multiple arrangement, this shall be supplemented with separate accessories (traverses) to be ordered. With special lens optics, especially for surface applications. With asymmetrical wide luminous intensity distribution. Measured light current 39000 lm, measuring power 266,00 W, light output 146 lm / W light color neutral white, similar colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Initial MacAdam colour tolerance ≤ 3 SDCM. Mean L80 (tq 25 ° C) = 100,000 h Aluminium die-cast case. Cover light output from single-disc safety glass. Color light body anthracite, similar to DB 703, powder coated. (DB 703). Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock strength according to IEC 62262: IK06. Wind attack area fw 0,178 m2. Weight: 13.3 kg. With electronic operating equipment, digital dimmable (DALI). Operating equipment according to DALI-2 standard (EN 62386). The equipment is interchangeable according to the ecodesign requirements (VO (EU) 2019 / 2020). Shock voltage resistance 10 kV. Parable ballast with light current constant holding (CLO). Connection power at the end of the service life: 310,00 W The product meets the essential requirements of the applicable EU Directives and the Product Safety Act and bears the CE marking. In addition, the lamp is certified by an independent test body ENEC.
