SNS QC7HRVFL-19 26-8TW ETDD801, Downlights Sonnos HCL lens white square ETDD8 22W 2600lm Very Wide Flood (VFL) IK06 3 SDCM

Downlights Sonnos HCL lens white square ETDD8 22W 2600lm Very Wide Flood (VFL) IK06 3 SDCM

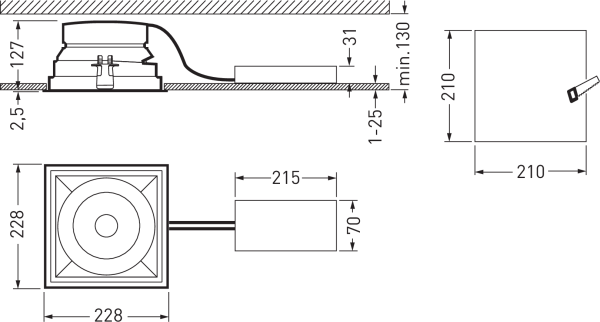

Compact LED downlight in square shape. Built-in downlight with edge for sawn ceiling openings. Tool-less ceiling installation by fast-mounting spanner. Square ceiling size 210 mm. Installation depth > = 127 mm, lamp height 130 mm. With high-gloss steamed plastic reflector. Color of the ceiling frame: white. Symmetric light distribution characteristics and half-life angle: 60 ° Very Wide Flood. Light control by collimator / lens technology. Screen-based (BAP) according to EN 12464-1 by limited light density L? 3000 cd / m2 above 65 ° limit of direct aperture according to UGR 19. With a LED module. Light flux 2,600 lm, connection power 24,0 W, light output 108 lm / W light color variable (hot white - day light), similar colour temperature (CCT) 2700-6500 K, general colour reproduction index (CRI) Ra = 80. Color site tolerance (initial MacAdam)? 3 SDCM corresponds to a very high color level of the LED in the application. Mean life L90 (tq 25 ° C) = 50,000 h, mean life L80 (tq 25 ° C) = 100,000 h. The light source is interchangeable according to the ecodesign requirements (VO (EU) 2019 / 2020). Permissible ambient temperature (ta): -20 ° C - + 25 ° C. Aluminium-cast housing and cooling body. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20. Type of protection: IP54. Bumper strength according to IEC 62262: IK06, test temperature filament wire test according to IEC 60695-2-11: 850 ° C. The network-side connection of the ballast is done by means of a connection terminal. The equipment is interchangeable according to the ecodesign requirements (VO (EU) 2019 / 2020). The lamp is silicone-free. The product meets the essential requirements of the applicable EU Directives and the Product Safety Act and bears the CE marking. In addition, the lamp is certified by an independent test body ENEC. For jobs with screen equipment. Offices, corridors, foyers, conference rooms, sales space, waiting zones. With Triux-Repurchase promises: The lamp is 10 years, spare parts (LED module, operating equipment and optical system) available 15 years after the invoice date. Reportable changes that serve progress are reserved.
