Valino G3 M84 PW19 40-840 ETDD, installed lamps Valino Prismen white ETDD 34W 4250lm Wide reduced glare UGR19 (W19) 3 SDCM

Mounted lamps Valino Prismen white ETDD 34W 4250lm Wide reduced glare UGR19 (W19) 3 SDCM

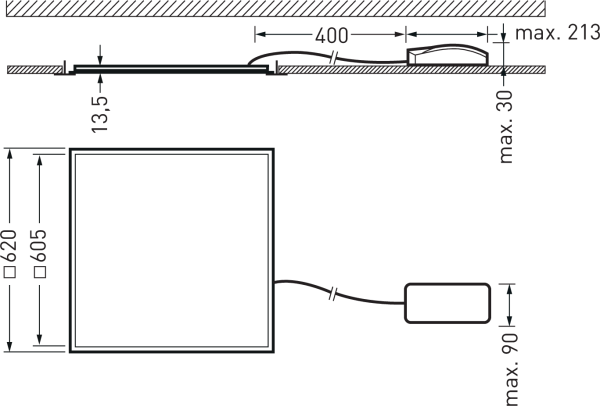

LED-mounted lamp with microcrismatic cover. M84 (625 mm x 625 mm). Inlet lamp for ceilings with visible support rails. In combination with an accessories to be ordered separately, the lamp is also suitable for use in sawn ceilings. The mounting in sawn openings by means of mounting accessories requires a ceiling material thickness of 18 mm - 40 mm Further information and data on the mounting of the light can be taken from the assembly instructions. Microprismatic cover made of PMMA. With deep-wide light intensity distribution. Binding assessment according to UGRs classification (EN 12464-1) < 19. Screen-based according to EN 12464-1 by limited luminance L ≤ 3000 cd / m2 for radiating angles above 65 °. Harmonic light effect by uniformly illuminated light output. Measured light current 4250 lm, measuring power 34.00 W - 0,00 W, light output 125 lm / W light color neutral white, similar colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Mean L80 (tq 25 ° C) = 70,000 h. Aluminium luminaire. Surface white coated (RAL 9016). Dimensions (L x B): 620 mm x 620 mm, lamp height 45 mm. Type of protection, space-side IP40. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20, shock strength according to IEC 62262: IK03, test temperature filament wire test according to IEC 60695-2-11: 650 ° C. Weight: 2.3 kg. With external operating equipment, digital dimmable (DALI) operating equipment according to DALI-2 standard (EN 62386). Lamp can be switched and dimmable via DALI control clamps (Touch DIM). The equipment is interchangeable according to the ecodesign requirements (VO (EU) 2019 / 2020). The lamp is suitable for operation on a 230V DC. Output ripple of the operating unit ≤ 4% for effective control of the LED system and flicker-free light. The lamp can be equipped with the monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU Directives and the Product Safety Act and bears the CE marking.
