Valino G3 M73 PW19 40-840 ET, fitted lamps Valino Prismen white ET 34W 4250lm Wide reduced glare UGR19 (W19) 3 SDCM

Valino Prismen white ET 34W 4250lm Wide reduced glare UGR19 (W19) 3 SDCM

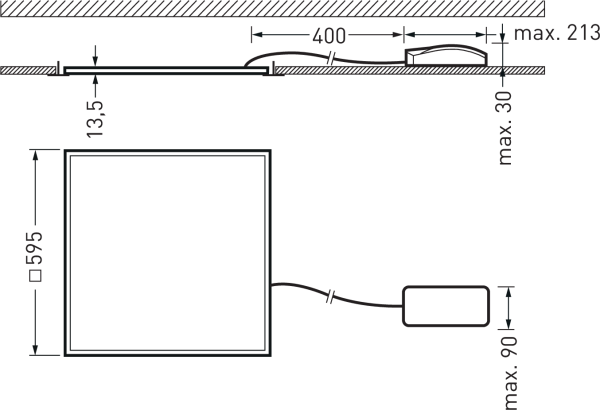

LED-mounted lamp with microcrismatic cover. M73 (600 mm x 600mm). Inlet lamp for ceilings with visible support rails. Further information and data on the installation of the lamp and its mounting can be taken from the assembly instructions. Microprismatic cover made of PMMA. With deep-wide light intensity distribution. Binding assessment according to UGRs classification (EN 12464-1) < 19. Screen-based according to EN 12464-1 by limited luminance L ≤ 3000 cd / m2 for radiating angles above 65 °. Harmonic light effect by uniformly illuminated light output. Measured light current 4250 lm, measuring power 34.00 W - 0,00 W, light output 125 lm / W light color neutral white, similar colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Mean L80 (tq 25 ° C) = 70,000 h. Aluminium luminaire. Surface white coated (RAL 9016). Dimensions (L x B): 595 mm x 595 mm, lamp height 45 mm. Type of protection, space-side IP40. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20, shock strength according to IEC 62262: IK03, test temperature filament wire test according to IEC 60695-2-11: 650 ° C. Weight: 2.1 kg. With electronic operating equipment, switchable. The equipment is interchangeable according to the ecodesign requirements (VO (EU) 2019 / 2020). Output ripple of the operating unit ≤ 4% for effective control of the LED system and flicker-free light. The product meets the essential requirements of the applicable EU Directives and the Product Safety Act and bears the CE marking. In addition, the lamp is certified by an independent test body ENEC.
