Fn7 C14 DL 35-830 ETDD 01, fitted lamps Finea C Diffusor white rectangular ETDD 44W 4521lm Lambertian (L) IK03 3 SDCM

Finea C Diffusor white rectangular ETDD 44W 4521lm Lambertian (L) IK03 3 SDCM

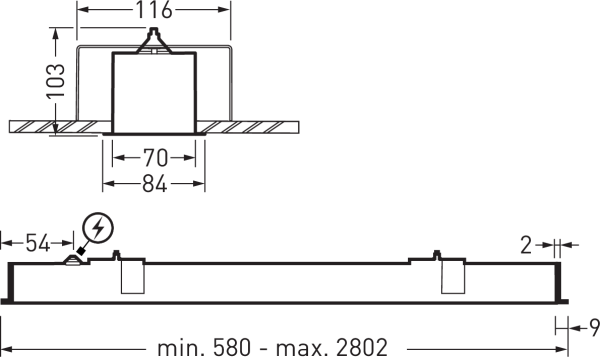

Single light of the built-in light channel system for the architecture-staging lighting. The lamp is part of a range of mounting, mounting and hanging lamps that are aligned in the appearance. System-relevant accessories such as installation / turning support and headpieces are included. For installation in sawn wall or ceiling sections. With a comprehensive edge for cutting edge cover of the installation opening. Please refer to the current assembly instructions. The opal, finely structured, homogenously illuminated PMMA diffuser is used in a wide range. With lambertic light intensity distribution. Light current and light color fixed. Ra > 80. Color site tolerance (initial MacAdam)? 3 SDCM. Mean L90 (tq 25 ° C) = 50,000 h., mean L80 (tq 25 ° C) = 100,000 h. The light source is interchangeable according to the ecodesign requirements (VO (EU) 2019 / 2020). Channel elements made of aluminium strip, plastic headpieces (PMMA). White coated surface (similar to RAL 9016). Dimensions (L x B): 1420 mm x 84 mm, light height 75 mm. Permissible ambient temperature (ta): 25 ° C - +. The network-side connection is done by means of 5-pin connection terminal up to 1.5 mm2. With electronic operating equipment, digital dimmable (DALI). The equipment is interchangeable according to the ecodesign requirements (VO (EU) 2019 / 2020). The product meets the essential requirements of the applicable EU Directives and the Product Safety Act and bears the CE marking. Light 10 years, spare parts (LED module, operating equipment, optical system) available 15 years after the invoice date, subject to reasonable changes for progress.
