وضعیت
:
موجود در انبار اروپا - زمان تحویل 4 تا 6 هفته
برند
:
ABB
تایپ کالا
:
B21 312-100
کد سازنده
:
2CMA100155R1000
کد EAN
:
7392696001557
ویژگیها
Width in units
2
Protection type (NEMA)
other
Type of assembly
REG
Reverse lock
Yes
Depth
65 mm
Execution of the interface
Modbus
قیمت
:
استعلام
حداقل قابل خرید
:
1 عدد
قابل پرداخت
:
استعلام
مشاهده جزییات فنی کالا :
SPK402, overvoltage transmitter 2P weather station
WST 8 / TS 35, screen connection terminal WST 8 / TS 35
3VA1132-5EF36-0DA0, power switch 3VA1 IEC Frame 160 switching power class M Icu = 55kA @ 415V 3-pole, system protection TM240, ATAM, In = 32A overload protection Ir = 22A... 32A Kur
3VA1080-2ED32-0DH0, power switch 3VA1 IEC Frame 100 switching power class B Icu = 16kA @ 415V 3.

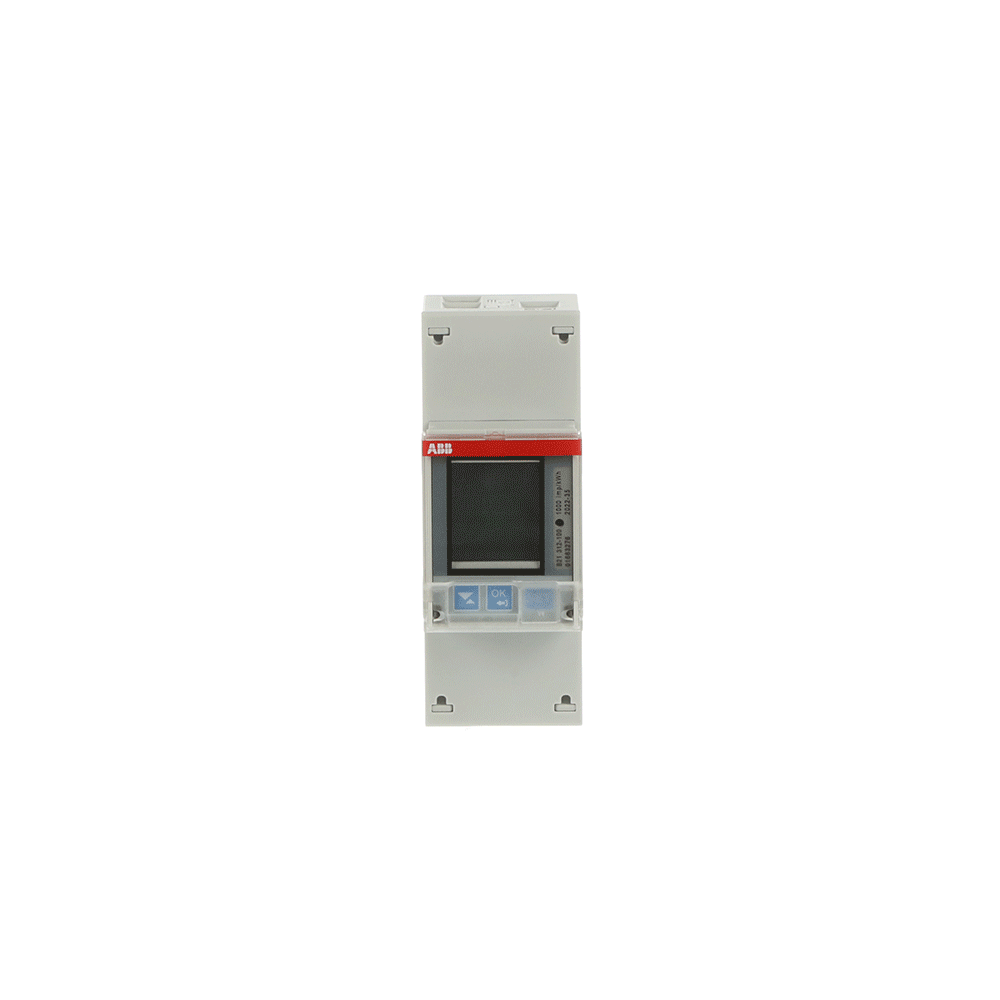

B21 312-100 AC current counter, RS485 silver, 1 phase, direct connection 65A
AC meters for measuring single-phase networks via a direct connection for currents up to 65 A. The following values are issued via a sieve segment display with up to 7 digits: active energy (class 1) and blind energy (class 2) for import and export, power, current, voltage (L-N), frequency, cos phi, power factor and dummy power. The communication can be done via the integrated interface RS485 (Modbus RTU) or via the infrared interface for connecting a KNX module. The energy counter has 2 fixed inputs and outputs. The output can be used as an impulse output for the output of the active or blind energy or as an alarm output. Up to 25 alarm values (threshold values with time delay) can be set here. The inputs are used to control the tariffs or to count external impulses. The replaceable intermediate counter allows the measurement of individual intervals. In addition, the counter controls up to 4 tariffs. The integrated watch can be used to perform time-controlled functions. The counter is calibrated according to MID and approved according to IEC. The installation width is 2 DIN modules.
