ER9A6SB70, gas hob, autark, IQ700

Gas hob, autark, IQ700

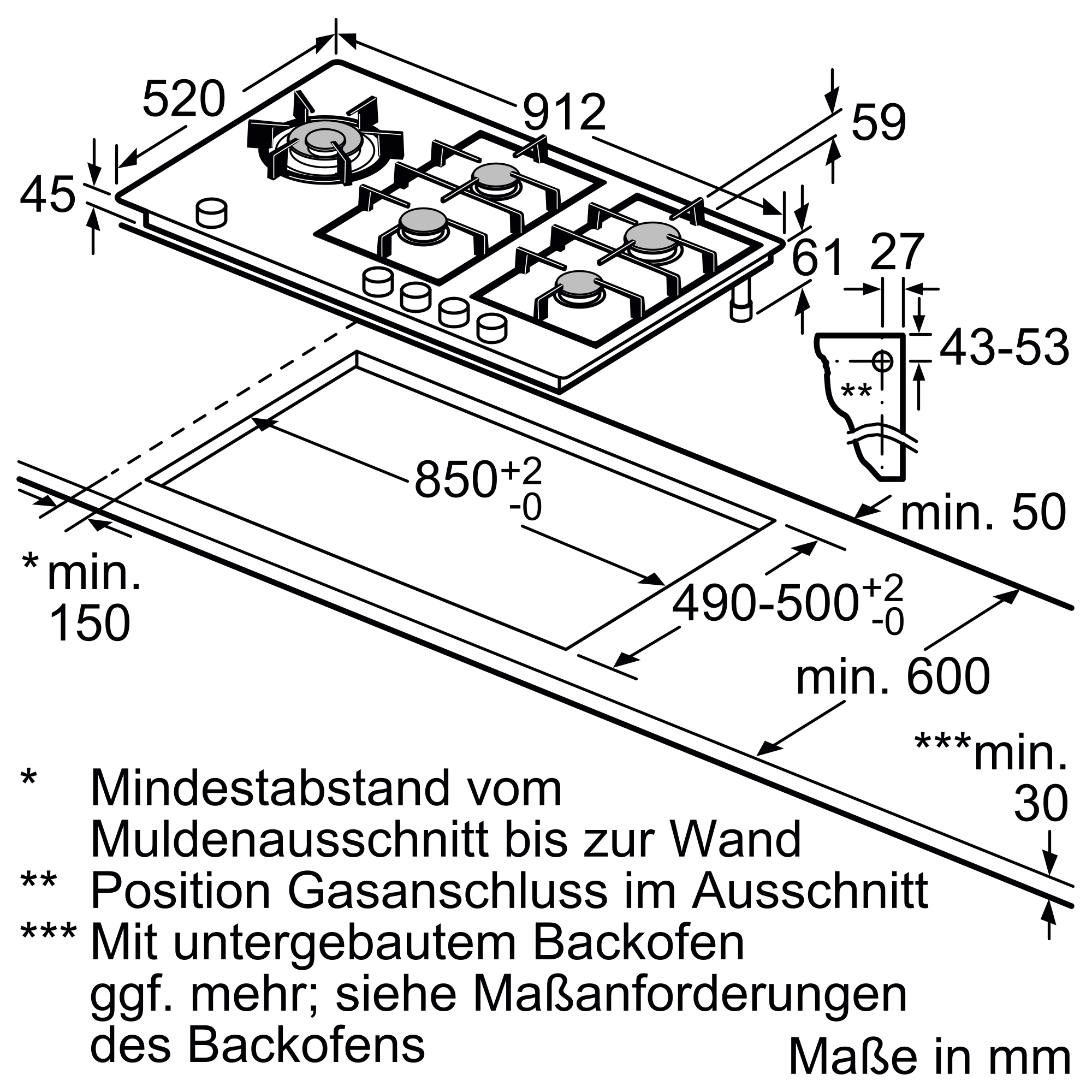

Design Glass ceramic surface, black facette front + rear, profiles side, aluminium brushed pot carrier made of cast iron BSH flat burner: elegant burner design with less parts user-friendliness stepFlame- technology - performance control in 9 steps: precisely insert the flame in nine defined stages. Smooth-resistant pot carrier: easy to clean in the dishwasher. Integrated switch: easy to access and operate in the front area for easy turning. One-hand ignition: to ignite the flame, press and just turn the fork. Burners and power 5 gas burners including 1 dual wokburner: use a particularly large power range and control two flame rings separately. Left: Wokburners up to 6.1 kW (depending on the type of gas) Front: Normal burner up to 1.9 kW (depending on the type of gas) Back: Sparkburners up to 1.1 kW (depending on the type of gas) Right: Strong burner up to 2.8 kW (depending on the type of gas) Front right: Normal burner up to 1.9 kW (depending on the type of gas) Safety of ignition: prevents further gas flow when the flame is extinguished. Installation (gas types & measurements) Usable for: Natural gas L / LL G25 / 20mbar (DE) Natural gas H / E 20mbar, E + 20 / 25mbar Natural gas H 25 mbar (HU) Natural gas L 25 mbar (NL) LPG G30,31 28-30 / 37mbar LPG G30 37 mbar (PL) LPG 50 mbar preset for natural gas (20mbar) Nozzles for liquid gas nozzles (28-30 / 37mbar). Nozzles for all other types of gas can be ordered via the customer service. For a change of nozzle please contact the customer service. Dimensions of the device (HxBxT mm): 59 x 912 x 520 Required niche size (HxBxT mm): 45 x 850 x (490 - 502) Minimum working thickness: 30 mm power cable: 1.5 m total connection value: 13.8 kW gas electrodes with a connection power of more than 11 kW must meet additional requirements, e.g. controlled air ventilation with a ventilation hood in exhaust mode. These may need to be discussed with the allator. Accessories Wok- support ring attached
